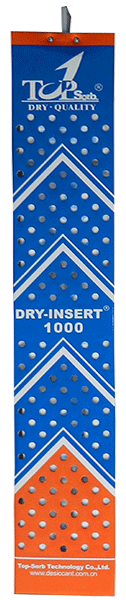

Dry Insert Shell-1000g

Product Presentation

Dry Insert-1000：TOPSORB patent product ,
Patent N.O：ZL 2011 3 0335167.0
Absorbent weight :1000g,more than 2.5kg moisture is absorbale; Hard shell design,with hook,nice looking and shape,improves the user’s brand , good drapability ,canbe insert the container groove, Save incasement space.

Specification

Appearance Size:860mmX135mm;
Quantity:12pcs/carton;

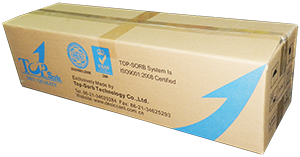

Carton Size: 930X270X250mm;
Package:1pcs/1 PE bag,
1 big PE bag/carton;
Shelf life:24 months from production date(under the right store and unabroken circumstance)
Gross Weight:16.5kg;
Ctn Qty per pallet: 4ctns/layerX8 layer=32ctns

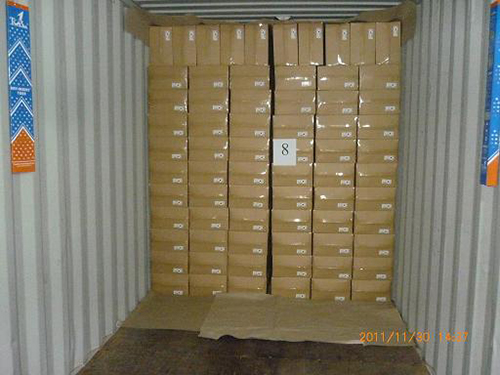

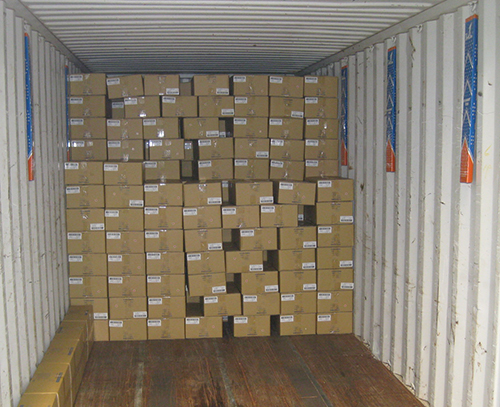

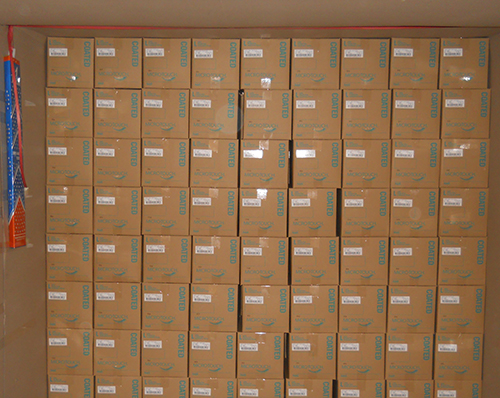

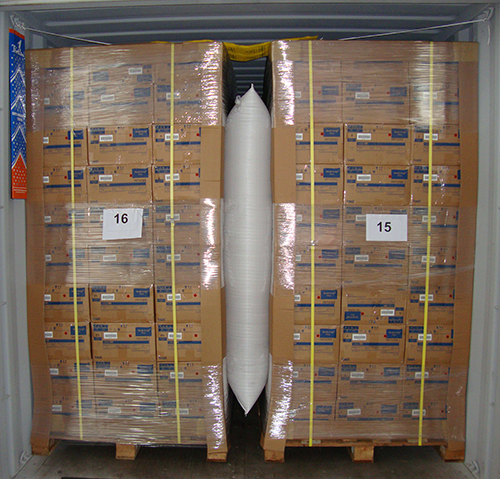

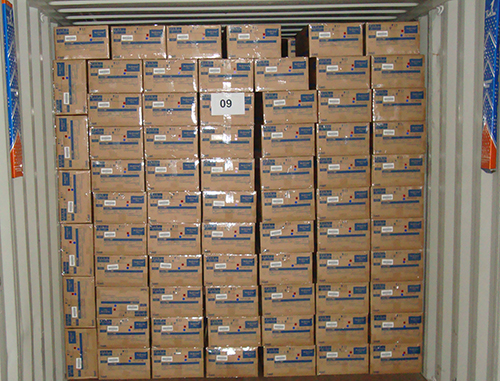

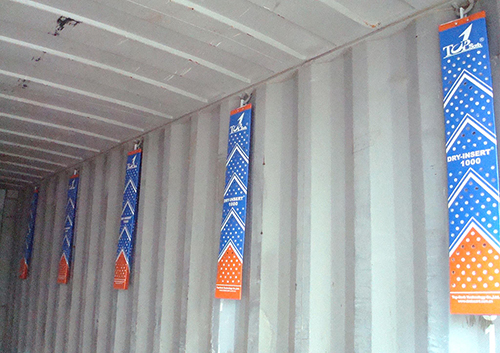

Application Pictures of Dry Insert-1000

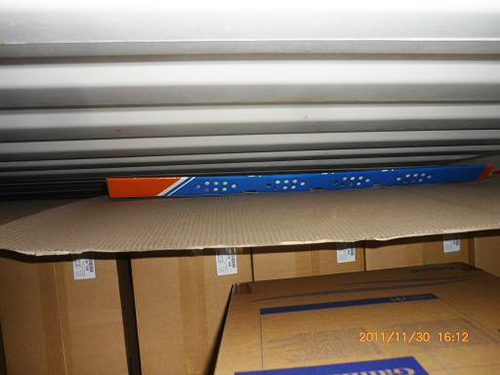

container desiccant application pictures

Container Desiccant Usage instruction

1． Check whether the container is damaged, whether there is a hole or crack on the container wall, the top and bottom. Container doors can be closed tightly and the seal must be good. The container must be dry and clean before loading.
2． Inspection of container wood floor. if possible, do not use containers with wood floor humidity over 20%, it would increase the risk of damp.
3． Seal all air-vents on the container wall. Very important!

Desiccant plays an effective role only in a closed environment. If the container door is not shut tightly, or there is damage on the container or the air-vents inside are not sealed, desiccant will never be able to absorb up the moisture that continually enters from outside.

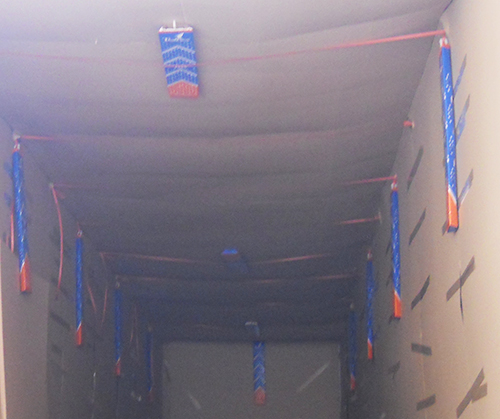

4． Hang Dry Insert and recommended dosage: Open the package and hang dry insert 1000 up to the iron hoop on the container wall,as shown in the picture,Use 4pcs~6pcs per 20’ container,8pcs~12pcs per 40’ container.For professional advice of desiccant dosage,please contact Topsorb.
